BCSB - CLOSED PIN JOINTS

SEP-En-Product-Photo-bcsb-closed-pin-joints

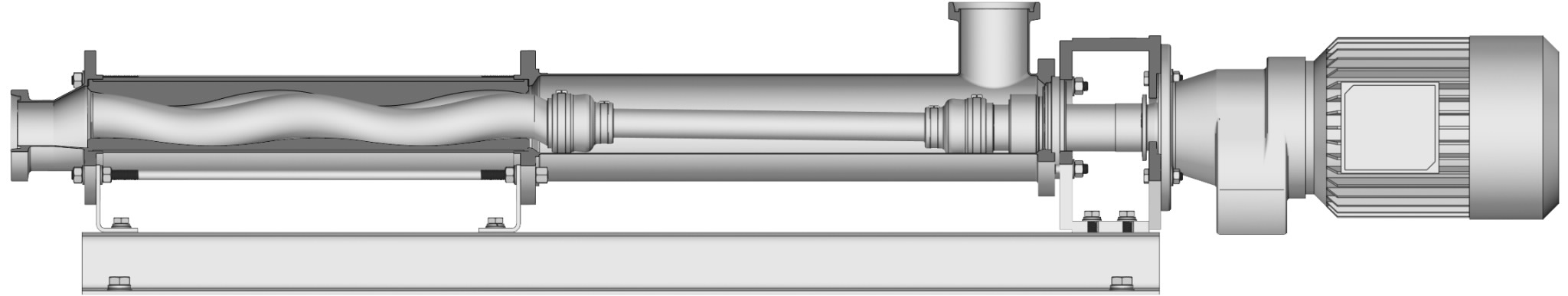

FOOD AND HYGIENIC PUMP WITH CLOSED PIN JOINTS

Versatile applications: The BCSB food pump from SEEPEX fulfills the requirements of many applications in the food, cosmetics and chemical industries. The materials of the individual components are food-certified (FDA / EU 1935-2004). The joints, which are hermetically sealed by elastomer sleeves and therefore particularly wear-resistant, ensure a long service life. It can be cleaned using CIP, SIP and COP methods for optimal hygiene.

Conveying Capacity

0.03–130 m³/h

0.132–572 US gpm

Pressure

≤ 24 bar

≤ 350 psi

Contact Us
Request a Quote
Aftermarket

Economical

Food grade pump with FDA-approved and EU 1935-2004 compliant components

Wear resistant

Joints hermetically sealed with elastomer sleeves

Simply clean

Sophisticated design for excellent cleaning results: CIP, SIP, COP

Easy maintenance

Low space requirements; standard components facilitate simple maintenance

Cost-saving

Use of tried and tested SEEPEX standard pin joints

Low pulsation

Minimal pulsation and low shear characteristics allow the gentle conveyance of sensitive media
