Back to the product list

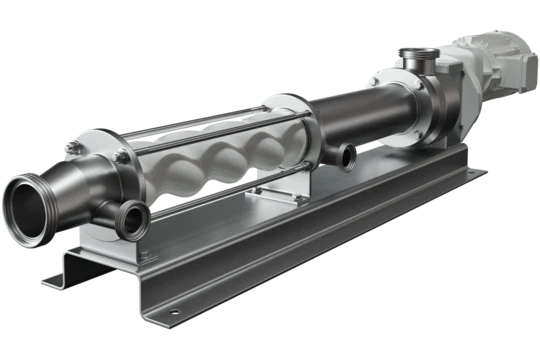

BCFH - EHEDG certificate

CERTIFIED FOOD AND HYGIENIC PUMPS

Where hygiene is of critical importance, the BCFH food and hygienic pump from SEEPEX safeguards particularly hygienic processes. The EHEDG Type EL Class I certificate verifies optimal cleaning and sterilization results, which are facilitated by the joint-free Flexrod design, a split suction casing with CFD-optimized geometry, and tangentially positioned flush connections. Thanks to minimal pulsation and shear characteristics, the BCFH food and hygienic pump it is particularly suitable for conveying of sensitive food.

Conveying Capacity

0.09–60 m³/h

0.4–264 US gpm

Pressure

≤ 24 bar

≤ 350 psi

Fulfills strict hygienic standards

Awarded the EHEDG Type EL Class I certification and certified according to 3-A Sanitary Standards, FDA-approved components

Low pulsation

Minimal pulsation and low shear characteristics allow the gentle conveying of sensitive products – even containing whole pieces

Residue free cleaning

Thanks to CFD-optimized housing geometry, joint-free Flexrod and tangentially positioned flush connections: CIP, SIP, COP

Service-friendly

Quick and simple maintenance without dismantling the suction line thanks to split suction casing – simple release of the Flexrod from the rotor and drive shaft

Process-optimized

Low cleaning costs and reduced production facility downtime due to quick and simple maintenance

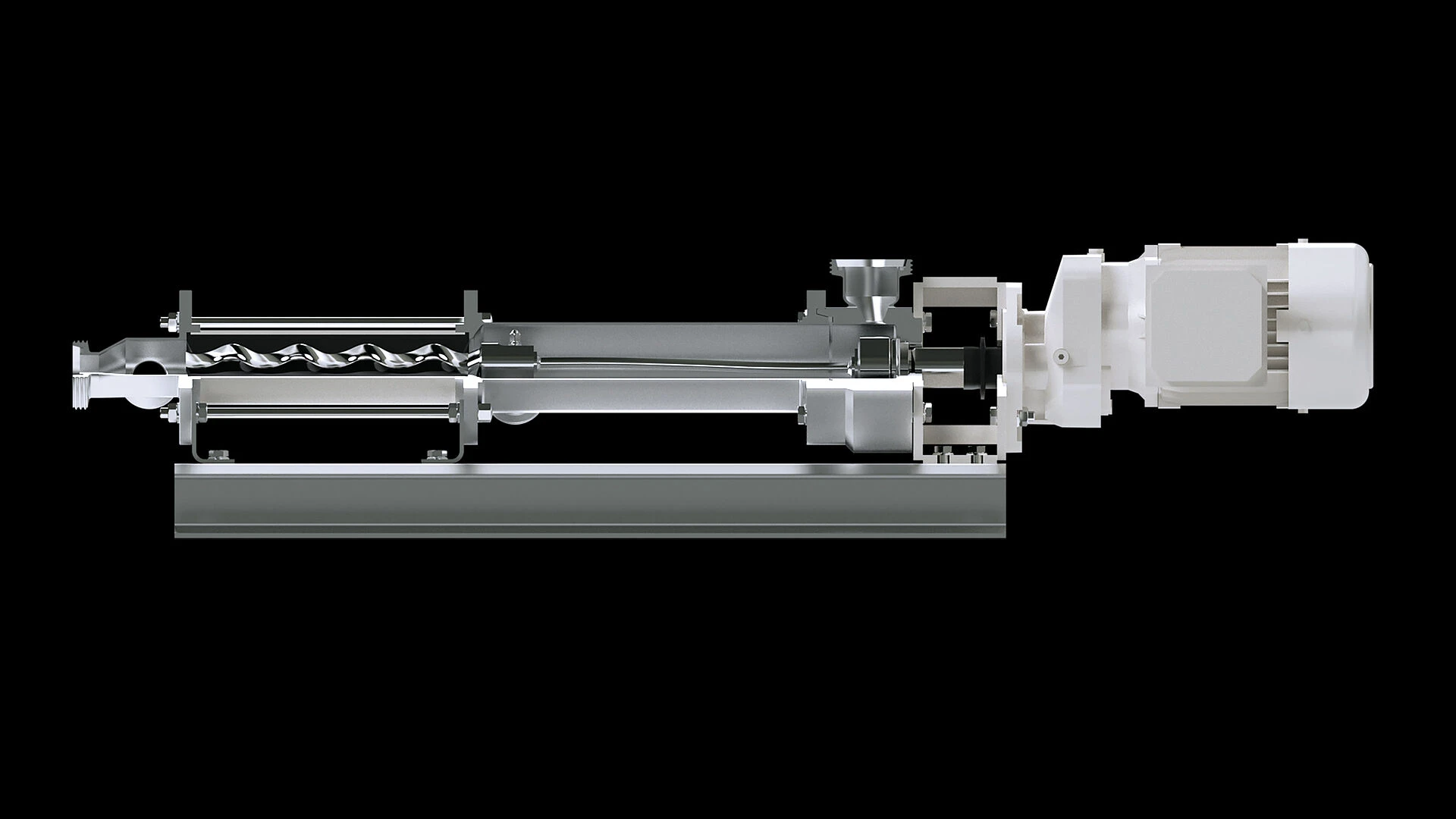

TECHNOLOGY

SEP-En-Product-Photo-bcfh-ehedg-certificate-V5

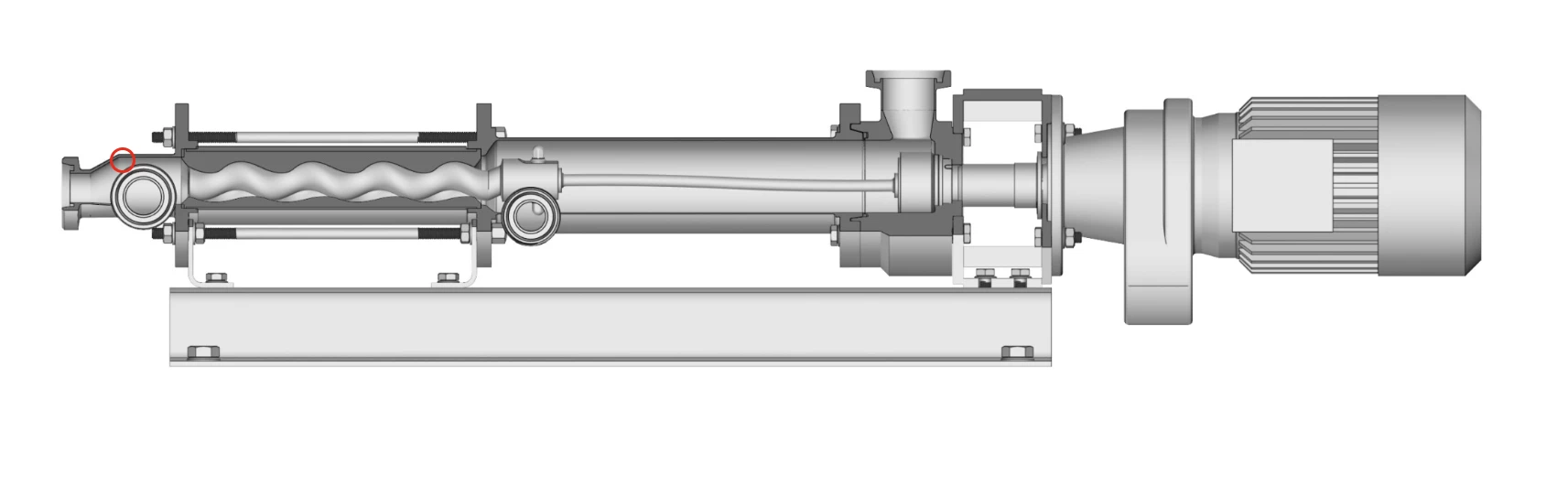

ACCESSORIES

SEP-En-Product-Photo-bcfh-ehedg-certificate-V6
